tramline ce before 03/2014 (ce)

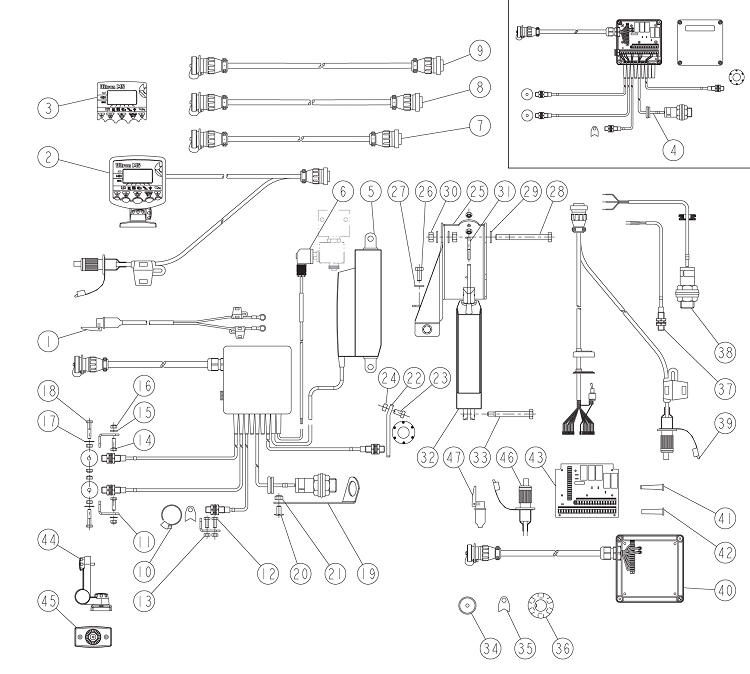

lb050203-00
| Marker | Reference | Designation | Retail price Excl. VAT | Status part | Qty |
|---|---|---|---|---|---|
| 1 | 683712 083712 | 983712 | 51000330 | Beam | Referenced product | ||
| 2 | 683657 983657 | 911026 | 083657 | ULTRON FACADE CONSOLE MS 83657-00 | Referenced product | ||
| 3 | 683930 983930 | 083930 | ULTRON FACADE - MS / REF 83930-00 | Referenced product | ||
| 4 | 683637 983637 | ULTRON HARNESS TL2ILS REF 83637-01 | Referenced product | ||
| 5 | 682502 982502 | 082502 | ELECTRIC CYLINDER 40 MM | Referenced product | ||
| 6 | 683642 983642 | 083642 | 7502136 | ELECTRO. CONNECTOR WD REF 83642-00 | Referenced product | ||
| 7 | 983619 | RALLONGE_ULTRON_4M_16_VOIES | Replaced | ||
| 8 | 983620 | RALLONGE_ULTRON_6M_16_VOIES | Replaced | ||
| 9 | 983621 | RALLONGE_ULTRON_9M_16_VOIES | Replaced | ||
| 10 | 799006 | SERFLEX CLIP POS.8 24-35 MINUS 0 | Referenced product | ||
| 11 | 062016 962016 | 1962016 | 2962016 | 3362016 | ANTI-COMPACTION PLATE BRACKET* | Referenced product | ||
| 12 | 551666 2211201 | Screw | Referenced product | ||
| 13 | 571206 2311105 | Nut | Referenced product | ||
| 14 | 551680 2211108 | SCREW H 6*20 ZN 6 C FE FP | Referenced product | ||
| 15 | 573107 2511103 | Washer | Referenced product | ||
| 16 | 571406 2312105 | Nut | Referenced product | ||
| 17 | 573206 2511203 | WASHER L 6 N ZINC PLATED | Referenced product | ||
| 18 | 551684 2211115 | HEX SCREW M6 X 30 Z | Referenced product | ||
| 19 | 042041 942041 | 1942041 | 2942041 | 3342041 | GAUGE SUPPORT BRACKET | Referenced product | ||
| 20 | 535853 2217104 | HEAD SCREW 8 X 16 Z | Referenced product | ||
| 21 | 571458 2301604 | Nut | Referenced product | ||
| 22 | 064061 964061 | SUPPORT TEMOIN DE ROTATION | Referenced product | ||
| 23 | 551865 | HEX SCREW M8X15 8.8 ZN FST A2B | Referenced product | ||
| 24 | 571208 2311101 | NUT H8 ZN 6 C FE | Referenced product | ||
| 25 | 051287 951287 | 2951287 | 3351287 | 1951287 | VARIATOR CYLINDER SUPPORT MS | Referenced product | ||
| 26 | 551870 2211106 | Screw | Referenced product | ||
| 27 | 573158 2511104 | Washer | Referenced product | ||
| 28 | 552140 2211202 | HEX SCREW M10 X 100 8.8 ZN FP A2B | Referenced product | ||
| 29 | 573109 2511102 | Washer | Referenced product | ||
| 30 | 571210 2311102 | HEX LOCKNUT M12, ZN | Referenced product | ||
| 31 | 599056 2999056 | EYE BOLT, LIGHT SERIES M6X40 | Referenced product | ||
| 32 | 682501 982501 | 7501153 | 082501 | ELECTRIC CYLINDER 130 MM | Referenced product | ||
| 33 | 621089 921089 | 021089 | 2921089 | LINACK ACTUATOR SPINDLE REF 21089-00 | Referenced product | ||
| 34 | 683914 7502134 | 083914 | 983914 | Magnet | Referenced product | ||
| 35 | 683915 983915 | SURFACE MAGNET REF S/MGNT/CRRY/003 | Referenced product | ||
| 36 | 683916 983916 | 083916 | DISTRIBUTION MAGNET, 6 POINTS - RDS | Referenced product | ||
| 37 | 683912 983912 | 083912 | 7502126 | ILS SENSOR | Referenced product | ||
| 38 | 683917 983917 | 7502137 | 083917 | Sensor | Referenced product | ||
| 39 | 720822 | ULTRON CONSOLE INFO CABLE, MS | Referenced product | ||
| 40 | 720823 | ULTRON BOX INFO CABLE, BARE | Referenced product | ||
| 41 | 720826 | SMALL GROMMET MS | Replaced | ||
| 42 | 720825 | PASSE FIL GRAND ULTRON MS | Replaced | ||
| 43 | 720824 | ULTRON PCB | Referenced product | ||
| 44 | 683952 083952 | 983952 | ULTRON-MS CONSOLE SUP KIT 83952-00 | Referenced product | ||
| 45 | 720873 | ULTRON CONSOLE SUPPORT BASE, MS | Replaced | ||
| 46 | 720855 56690140 | MALE PLUG 12V COBO | Referenced product | ||
| 47 | 720854 | FEMALE PLUG 12V COBO | Referenced product |
