xeos tf before 03/2017 (tf)
15tf06101 ...

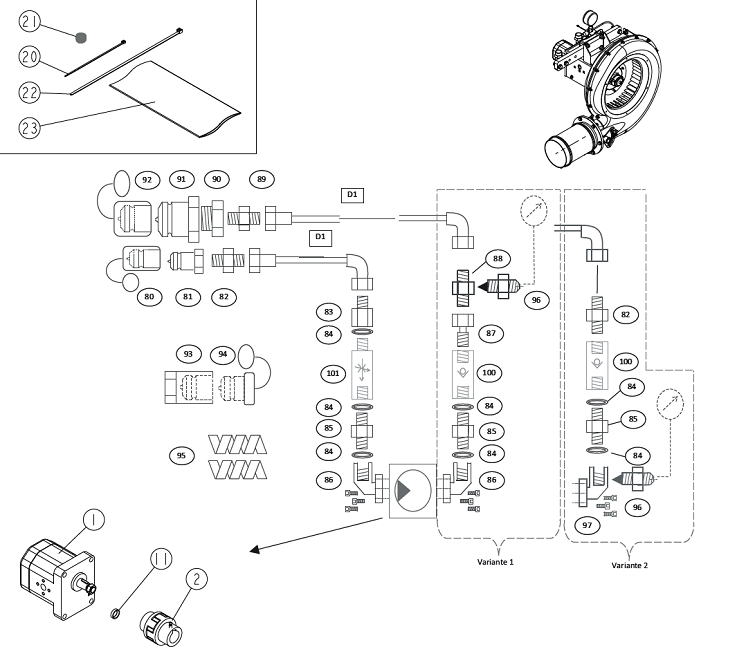

hd120603-02
Share the product data sheet Print board
Click here to see this board's pieces
hd120603-02
MarkerReferenceDesignation Retail price Excl. VATStatus partQty
1683946 983946 | 083946Motor Referenced product
2680486 980486 | 080486 | 980486MClutch Referenced product
11722281 SHAFT SEAL, 18X28X7 VITON 63 Referenced product
20794642 Tie Band Product discontinued
21688133 988133 | 088133GREEN ADHESIVE DOT 88133-00 Referenced product
22794760 BLACK FITTING LINK 295X5 Referenced product
23687401 987401 | 087401Sleeve Referenced product
80hd160103-00_marker_80 Bouchon coupleur push pull M 1/2 Product discontinued
81hd160103-00_marker_81 Coupleur push pull M 1/2 (1/2 F) Product discontinued
82hd160103-00_marker_82 Union M 1/2 / M 18L Din Product discontinued
83hd160103-00_marker_83 Union F 1/2 / M 18L Din Product discontinued
84hd160103-00_marker_84 Joint 1/2 gaz BS Product discontinued
85hd160103-00_marker_85 Union M 1/2 / M 1/2 Product discontinued
86721726 Flange Referenced product
87hd160103-00_marker_87 Union M 1/2 / F 18L Din Product discontinued
88hd160103-00_marker_88 Union M 18L Din / M 18L Din Product discontinued
89hd160103-00_marker_89 Union M 3/4' / M 18L Din Product discontinued
90hd160103-00_marker_90 Union F 3/4 / M 1' Product discontinued
91hd160103-00_marker_91 Coupleur push pull M 1” (1' F) Product discontinued
92hd160103-00_marker_92 Bouchon coupleur push pull M 1” Product discontinued
93hd160103-00_marker_93 Coupleur push pull F 1” (1' F) Product discontinued
94hd160103-00_marker_94 Bouchon coupleur push pull F 1” Product discontinued
95hd160103-00_marker_95 Gaine spiralée Øint20 L=300mm Product discontinued
96722563 PRESSURE TAKE-OFF 16X200 Referenced product
97722263 Flange Referenced product
D1hd160103-00_marker_D1 Flex Ø5/8 F 18L Din / F coude 18L Din L=2000mm Product discontinued
100683960 983960 | 083960Valve Referenced product
101083945 983945PRESSURE FLOW REGULATOR TF Referenced product
