cultiline hr 100 (hr/hp/hc)
... 10hp04148

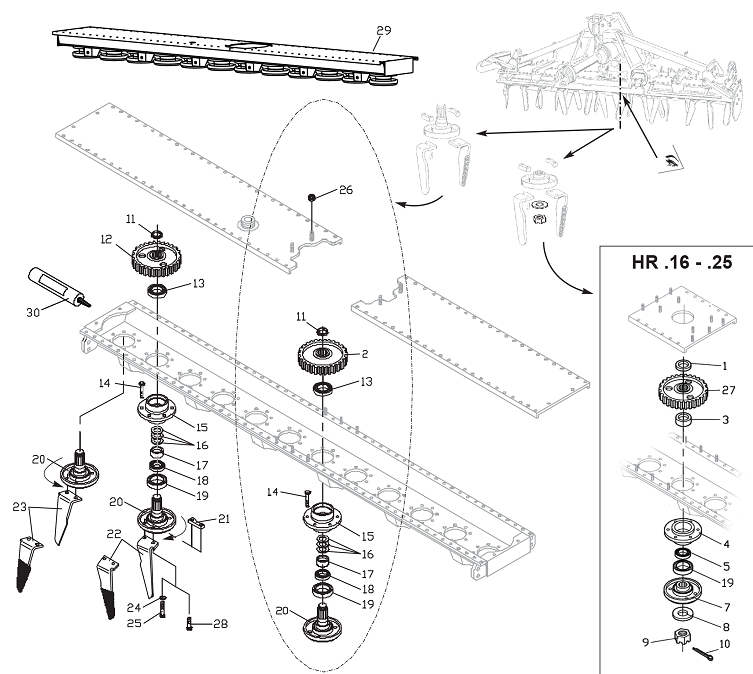

HR 100.17
bb010202-00
| Marker | Reference | Designation | Retail price Excl. VAT | Status part | Qty |
|---|---|---|---|---|---|
| 1 | 720506 | SPACER ON UPPER DRIVE GEAR | Referenced product | ||
| 2 | 721279 | DRIVE GEAR HR .19-.22-.26 | Referenced product | ||
| 3 | 720508 | ENTRETOISE INF ENGRENAGE MENANT | Referenced product | ||
| 4 | 720718 | PALIER ROTOR MENANT HR .25 | Referenced product | ||
| 4 | 720509 | DRIVE ROTOR BEARING HR.16 | Referenced product | ||
| 5 | 720510 | BEARING, NUP 2210 | Referenced product | ||
| 7 | 720512 | CENTRAL KNIFE SUPPORT HR300.1 | Referenced product | ||
| 7 | 720720 | DRIVE TINE CARRIER HR .25 | Referenced product | ||
| 8 | 720513 | WASHER D 34 X 65 X 8 | Referenced product | ||
| 9 | 720514 | NOTCHED HALF NUT MB 33 | Referenced product | ||
| 10 | 720736 | SPLIT PIN D 5X50 R | Referenced product | ||
| 11 | 720515 | SELF-LOCKING NUT M 40X1.5 | Referenced product | ||
| 12 | 720517 | GEAR HR .19-.22-.28 | Referenced product | ||
| 12 | 720721 | GEAR HR .25-.26-.36 | Referenced product | ||
| 13 | 720518 | BEARING 32013X | Referenced product | ||
| 14 | 720519 | VIS TEF 14X35 10.9 DACR+ANT 2 | Replaced | ||
| 15 | 720520 | PALIER ROTOR HR .16-.17-.20 | Replaced | ||
| 15 | 720722 | PALIER ROTOR HR .25-.26 | Replaced | ||
| 16 | 720521 | SPACER REF 015-026 | Referenced product | ||
| 16 | 720522 | SPACER REF 015-027 | Referenced product | ||
| 16 | 720523 | SPACER REF 015-028 | Replaced | ||
| 17 | 720524 | ROTOR BEARING SPACER | Referenced product | ||
| 18 | 720525 | BEARING 32011X | Referenced product | ||
| 19 | 720511 | SEAL C 70/92/15 HR .19-.22-.28 | Referenced product | ||
| 19 | 720719 | SEAL K 70/95/14.5 HR -25-.26-.36 | Referenced product | ||
| 20 | 720526 | PORTE-DENTS HR .16-.17-.20 | Replaced | ||
| 20 | 720723 | PORTE-DENTS HR .25-.26 | Replaced | ||
| 21 | 720341 | TINE BLOCK PLATE L65 | Referenced product | ||
| 22 | 680132 980132 | 080132 | 330 X 16 RIGHT CARBID BOLTED TINE | Referenced product | ||
| 22 | 680146 980146 | 080146 | 330 X 16 RIGHT STANDARD BOLTED TINE | Referenced product | ||
| 23 | 680131 980131 | 080131 | 330 X 16 LEFT CARBID BOLTED TINE | Referenced product | ||
| 23 | 680145 980145 | 080145 | 330 X 16 LEFT STANDARD BOLTED TINE | Referenced product | ||
| 24 | 720399 | WASHER REF 911-579.00.00 | Referenced product | ||
| 25 | 720400 | VIS 16 X 57 X 1.5 - 12.9 | Replaced | ||
| 26 | 720527 | SELF-LOCKING NUT M12 UNI 7473 | Referenced product | ||
| 27 | 720507 | DRIVE GEAR HR .16 - .25 | Referenced product | ||
| 28 | 720342 | TEE SCREW 16X52X1.5 - 12.9 (NO WASHER) | Referenced product | ||
| 29 | 721588 | DISC TRIMMER ASSY HR 3000.19 | Referenced product | ||
| 29 | 721592 | LAMIER ASS HR 4000.26-.30 | Product discontinued | ||
| 29 | 721591 | DISC TRIMMER ASSY HR 4000.22 | Referenced product | ||
| 29 | 721590 | LAMIER ASS HR 3500.22 | Referenced product | ||
| 29 | 721589 | LAMIER ASS HR 3000.26-.30 | Product discontinued | ||
| 29 | 721702 | LAMIER ASS HR 3500.26-.30 | Referenced product | ||
| 29 | 722532 | Lamier ass. hr 450.26 | Article not created | ||
| 30 | 720528 | LAMIER MASTIC CARTRIDGE, BV HR | Referenced product |
